Non-Contact Measurement
Non-Contact Measurement Capacitance Sensors Measurements 25μm to 12mm Min. Resolution 20nm View Products Fiber Optic Sensors Measurements 102μm to 7.6mm Min. Resolution 0.1μm View Products 1D Laser Systems Measurements 2mm to 400mm Min. Resolution 0.04μm View Products 2D/3D Laser Systems Measurements 6mm to 1m (Z) Min. Resolution 3μm View Products What is Non-Contact Displacement Sensing? Non-Contact displacement sensing can be accomplished by a variety of different types of sensors such as eddy current , capacitance, laser triangulation, confocal chromatic [...]
MICROTRAK 3: 1D Laser Displacement Sensor
An essential measurement tool for process automation, quality control and tool automation control. Request Quote Download Brochure Compact laser triangulation sensor head for easy integration to machine control system High resolution, high speed laser displacement sensor (non-contact linear displacement sensor) utilizes the latest CMOS sensor technology that challenges even the most difficult measurement applications. The Microtrak™ 3 is an essential measurement tool for process automation, quality control and tool automation control, for applications such as, thickness measurement, dimensional displacement, part profiling, vibrations testing, build-up measurement, and much more. Measurement rate [...]
Accumeasure AS-500 Modular Capacitance Rack System

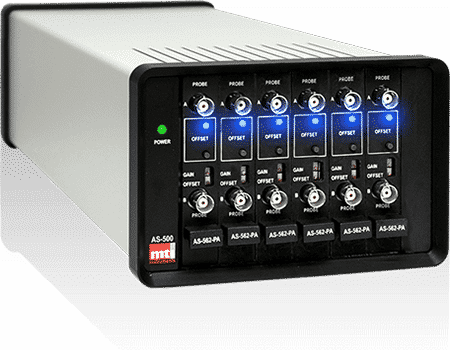

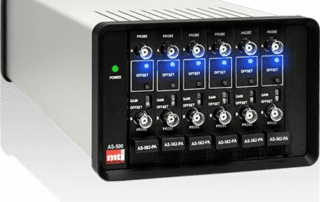

Multi-channel capacitance system designed for displacement, position and gap measurement Request Quote Download Data Sheet Accumeasure Probes Brochure Push/Pull Probes Brochure Compact by design, the Accumeasure TM 500 capacitve sensing sensor is ideal for in vehicle testing of brake rotors, axle runout, or thermal expansion testing using the DC model. Multiple racks may be synchronized together for multichannel operation on a common surface to avoid inter-channel interference. The Accumeasure TM 500 compact multi channel capacitance rack system accepts up to 6 capacitance amplifiers. Capacitance sensors are used to measure position, thickness, dynamic [...]
Accumeasure OEM Boards

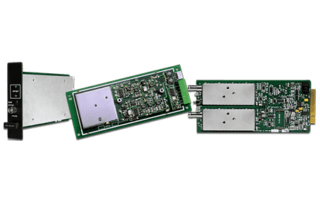

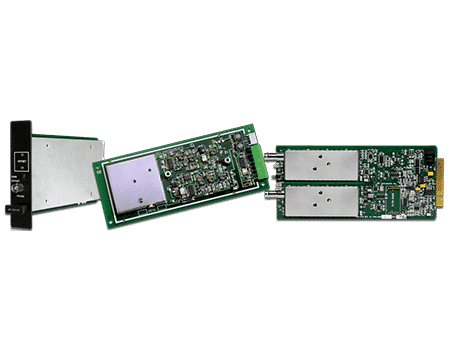

Custom High Accuracy OEM solutions for micro-positioning and feedback control applications Request Quote Data Sheet The Accumeasure MicroCap is a compact, custom designed, OEM capacitance board for high-precision non-contact displacement, thickness and gap measurement. The AccumeasureTM Microcap capacitance board allows rapid deployment for OEMs that require custom measurement solutions for micro-positioning, thermal correction, focusing and closed loop control applications. About Accumeasure OEM Boards The Accumeasure MicroCap is a compact, custom designed, OEM capacitance board for high-precision non-contact displacement, thickness and gap measurement. The AccumeasureTM Microcap capacitance board allows rapid deployment for OEMs that require custom [...]
Accumeasure Analog Capacitance System

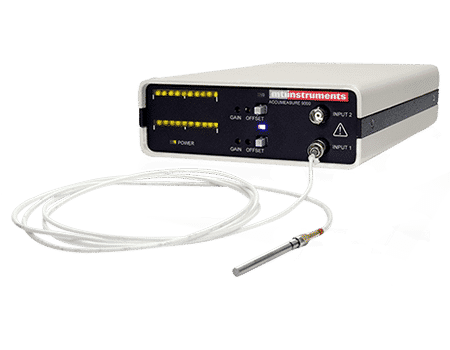

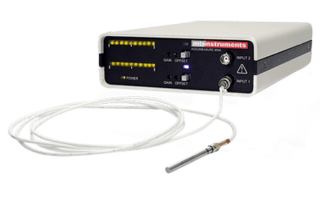

Accumeasure System 9000 Ultra-high Precision Capacitive gap or displacement measurement gauge offering nanometer accuracy and stability. Request Quote Data Sheet Accumeasure Probes Brochure Push/Pull Probes Brochure Accumeasure System 9000 is a high-resolution, capacitance-based instrument that provides the perfect solution to many previously unattainable measurement applications. The AS-9000 delivers nanometer level resolution for ultra-high-precision measurements each and every time. Lightweight. Compact. Fast and Easy Setup. Accumeasure System 9000 is a high-resolution, capacitance-based instrument that provides the perfect solution to many previously unattainable measurement applications. Rapid response time and extremely low noise [...]
Fiber Optic Sensor Principles
The Fotonic Sensor™ is a non-contact instrument, which uses the fiber optics lever principle to perform displacement measurement, vibration analysis and surface-condition measurements. The Fotonic Sensor transmits a beam of light through a flexible fiber-optic probe, receives light reflected from a target surface, and converts this light into an electrical signal proportional to the distance between the probe tip and the target being measured. A simplified example of the fiber optic principal is shown in Figure 2. The output signal voltage from the fiber optic sensor is then used to determine position, displacement, vibration amplitude, frequency and waveshape of a [...]
Accumeasure HD

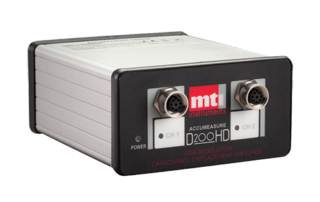

Picometer Resolution Capacitance Measurement System Request Quote Download Data Sheet The D200HD is a two-channel, picometer scale, capacitance based, displacement measurement instrument for conductive targets. The D200HD achieves very high resolution with the aid of external preamplifiers that are located close to the probes that eliminate parasitic capacitance effects which cause noise. Digital communication is provided via Ethernet or USB. The bandwidth and range extension of the probes are digitally programmable. Resolutions as low 20pm may be achieved with a 10um range probe. Resolution ≤ 0.0000001 √(Hz) FSR Temp Amplifier [...]
Accumeasure Capacitance Sensors Overview
Accumeasure Series Request Quote Data Sheet Technology-driven measurement solutions for high resolution gap applications. The Accumeasure product line offers affordable, precise measurement solutions for a wide range of environmental conditions and configurations. The Accumeasure product line features capacitive sensor products for high resolution gap and displacement measurements that require a high level of accuracy that is both stable and repeatable. A capacitive sensing system consists of a probe and amplifier. Capacitive measurements can be performed in a multitude of environments using non-contact passive capacitance probes that are not affected by magnet fields, [...]
MTI OEM Capacitance Products
MTI OEM Capacitance Products Capacitance Displacement and Gap Measurement Probes View Products Accumeasure OEM Boards View Products Custom Capacitance Sensors Measure displacement and gap with non-contact force at sub-micron resolution. Ideal for applications such as lobing, lens focusing, Piezo positioning, sheet metal thickness, gap measurement, as well as flatness and alignment test applications. Resources Capacitance Guide for Industrial Applications Capacitive Non-Contact Measurement Products Overview
Selecting a Displacement Sensor / Measuring System
Capacitive displacement sensors Capacitive displacement sensors are non-contact devices that are used for measurements at a high-resolution. It can also be used to check the position of any conductive object as well as measure the width or density of non-conductive materials. Capacitive displacement sensors have a large variety of uses including precision thickness measurements, assembly line testing, assembly metrology, and semiconductor processing. Capacitive displacement sensors can be found in manufacturing facilities all around the globe. There’s more to selecting the proper type of displacement sensor and measurement system than meets the eye. To select the appropriate type of device [...]
