MICROTRAK 3: 1D Laser Displacement Sensor
An essential measurement tool for process automation, quality control and tool automation control. Request Quote Download Brochure Compact laser triangulation sensor head for easy integration to machine control system High resolution, high speed laser displacement sensor (non-contact linear displacement sensor) utilizes the latest CMOS sensor technology that challenges even the most difficult measurement applications. The Microtrak™ 3 is an essential measurement tool for process automation, quality control and tool automation control, for applications such as, thickness measurement, dimensional displacement, part profiling, vibrations testing, build-up measurement, and much more. Measurement rate [...]
Fiber Optic MTI 2100 Fotonic Sensor
Undoubtedly an essential measurement tool for process automation, quality control and tool automation control. REQUEST A QUOTE Download MTI-2100 Fotonic Sensor Brochure Download Fotonic Edge Probe Brochure Fast speed measurement sensor for ultrasonic horn vibration measurement The MTI-2100 features advanced fiber-optic non-contact sensor using reflectance electronic technologies for precise measurements of displacement, active vibration control, position, and distance for dynamic measurement in cryogenic, vacuum | high pressure, or in high magnetic field and harsh environment. It sets new performance standards with resolution up to 0.01 µin. (2.5 Angstroms) and frequency response from direct-coupled [...]
Manual Semiconductor Metrology System
Cost-effective alternative to full-automated wafer measurement and inspection systems Request a Quote Download Brochure Product can provide measurement of thickness and bow of all wafer materials including Silicon, Gallium-Arsenide, Indium-Phosphide and sapphire or tape. The Proforma 300i wafer thickness gauge is a capacitance based, differential measurement system that performs non-contact thickness measurements of semiconducting and semi-insulating wafers. By utilizing MTI Push/Pull technology, the Proforma 300i does not require the wafers to have a consistent electrical ground resulting in exceptional accuracy and repeatability for most wafer types. The Proforma 300i system includes full remote control operating software [...]

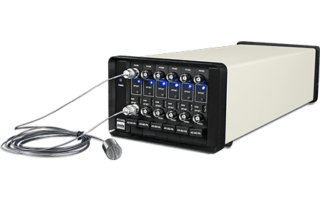

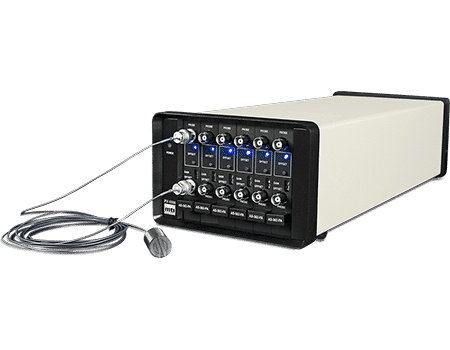

Photovoltaic/Solar Metrology System
This is a Legacy Product. For information or support please contact MTI Instruments directly at [email protected]. For in-process monitoring of solar/photovoltaic wafers Download Brochure Request a Quote Multi-channel thickness, TTV and bow measurement module for in-process monitoring of solar/photovoltaic wafers and other materials. About the Photovoltaic/Solar Metrology System Multi-channel thickness, TTV and bow measurement module for in-process monitoring of solar/photovoltaic wafers and other materials. Up to three thickness channels per rack Proprietary MTII push/pull capacitance probes work with all wafer types Minimum, maximum, average and total thickness variation [...]
Accumeasure AS-500 Modular Capacitance Rack System
Multi-channel capacitance system designed for displacement, position and gap measurement Request Quote Download Data Sheet Accumeasure Probes Brochure Push/Pull Probes Brochure Compact by design, the Accumeasure TM 500 capacitve sensing sensor is ideal for in vehicle testing of brake rotors, axle runout, or thermal expansion testing using the DC model. Multiple racks may be synchronized together for multichannel operation on a common surface to avoid inter-channel interference. The Accumeasure TM 500 compact multi channel capacitance rack system accepts up to 6 capacitance amplifiers. Capacitance sensors are used to measure position, thickness, dynamic [...]
Accumeasure OEM Boards
Custom High Accuracy OEM solutions for micro-positioning and feedback control applications Request Quote Data Sheet The Accumeasure MicroCap is a compact, custom designed, OEM capacitance board for high-precision non-contact displacement, thickness and gap measurement. The AccumeasureTM Microcap capacitance board allows rapid deployment for OEMs that require custom measurement solutions for micro-positioning, thermal correction, focusing and closed loop control applications. About Accumeasure OEM Boards The Accumeasure MicroCap is a compact, custom designed, OEM capacitance board for high-precision non-contact displacement, thickness and gap measurement. The AccumeasureTM Microcap capacitance board allows rapid deployment for OEMs that require custom [...]
Accumeasure Analog Capacitance System
Accumeasure System 9000 Ultra-high Precision Capacitive gap or displacement measurement gauge offering nanometer accuracy and stability. Request Quote Data Sheet Accumeasure Probes Brochure Push/Pull Probes Brochure Accumeasure System 9000 is a high-resolution, capacitance-based instrument that provides the perfect solution to many previously unattainable measurement applications. The AS-9000 delivers nanometer level resolution for ultra-high-precision measurements each and every time. Lightweight. Compact. Fast and Easy Setup. Accumeasure System 9000 is a high-resolution, capacitance-based instrument that provides the perfect solution to many previously unattainable measurement applications. Rapid response time and extremely low noise [...]
MICROTRAK 4: 1D Laser Displacement Sensor
Accurate and repeatable displacement measurements from highly reflective to dull surfaces Request a Quote Download Microtrak 4 Brochure Compact digital laser displacement sensor head with stable and accurate measurements The latest 1D laser displacement sensor from MTI provides excellent speed and accuracy for even the most difficult applications and provides data output and power through a single USB cable. The MicroTrak 4 is the ultimate 1D laser sensor for measuring height, thickness, displacement, vibration, and more, with a sensor frame rate of 40k Samples/sec. and linearity of 0.03% FSO (Full Scale Output) accuracy and [...]
Fiber Optic Sensor Principles
The Fotonic Sensor™ is a non-contact instrument, which uses the fiber optics lever principle to perform displacement measurement, vibration analysis and surface-condition measurements. The Fotonic Sensor transmits a beam of light through a flexible fiber-optic probe, receives light reflected from a target surface, and converts this light into an electrical signal proportional to the distance between the probe tip and the target being measured. A simplified example of the fiber optic principal is shown in Figure 2. The output signal voltage from the fiber optic sensor is then used to determine position, displacement, vibration amplitude, frequency and waveshape of a [...]
Download Top Uses of the 1510A
Thank you for your interest in the 1510A! Here are some important links about the 1510A: Download 1510A Brochure Download Shareable Top 5 Uses of 1510A View online Product Information
