Thunderbolt 3 EON Express 12-Bit Digitizers
View Specifications TB3 – EON Starting at $17,650 Request Quote Includes: EON Express Digitizer Card Thunderbolt 3 PCIe Gen3 Expansion Box Thunderbolt 3 USB-C Cable Order Model #: TB3-ENE123G20 TB3-ENE126G10 A/D Resolution: 12-Bit 12-Bit # of Channels (CH): 2 1 Max. Sample Rate per CH: 3 GS/s 6 GS/s CH Input Bandwidth: 1.75 GHz 1.75 GHz Onboard Sample Memory: 2 GS (4 GB) 2 GS (4 GB) Thunderbolt 3 is the exciting new high-speed 5 GB/s interface standard that provides the ability to utilize our highest performance PCIe instruments with compact PC systems with limited or no PCIe expansion [...]
GaGe Application Note: Creating a Data Link Signal Integrity Test Platform

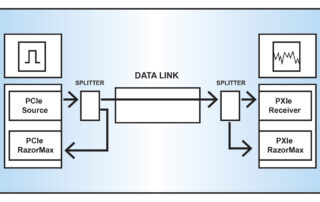

Creating a Data Link Signal Integrity Test Platform This application note describes how a manufacturer of data links utilizes GaGe Instruments’ PC-based high-speed data acquisition digitizers to perform production-level signal integrity testing. Data Link Device Testing The data link device under test (Figure 1) is characterized by comparing test signals that are input to the link with signals measured at the link output. Differences between these two test signals indicate a degradation by the link during transmission. The input and output test signals require sampling at 1 GS/s (GigaSample per second) with at least 14-bit vertical resolution. [...]
High-Speed A/D 8-Bit Digitizers
8-Bit Digitizers GaGe 8-bit resolution digitizer models divide the input voltage range into 256 different digitization levels with sampling rates at up to 4 GigaSamples per second (GS/s) on 1 channel or 2 GigaSamples per second (GS/s) on 2 channels with input bandwidths of up to 1.5 GHz, deep onboard sample memory up to 16 GS (16 GB), and true ENOBs of up to 7.6 bits. In addition to their advanced features, our 8-bit digitizers are easy to use, with user-friendly software and a simple interface that puts all the necessary tools at your fingertips. We also include software [...]
High-Speed A/D 12-Bit Digitizers
GaGe 12-bit resolution digitizer models divide the input voltage range into 4,096 different digitization levels, which improves the delectability limit by a factor of 16 over the 256 levels of an 8-bit resolution digitizer model. GaGe 12-bit digitizers feature sampling rates at up to 3 GigaSamples per second (GS/s) on 2 channels or 6 GigaSamples per second (GS/s) on 1 channel with input bandwidths of up to 1.75 GHz, deep onboard sample memory up to 4 GS (8 GB), and true ENOBs up to 8.9 bits. In addition to their advanced features, our 12-bit digitizers are easy to use, [...]
High-Speed A/D 14-Bit Digitizers
GaGe 14-bit resolution digitizer models divide the input voltage range into 16,384 different digitization levels, which improves the delectability limit by a factor of 4 over the 4,096 levels of a 12-bit resolution digitizer model and a factor of 16 over the 256 levels of an 8-bit resolution digitizer model. GaGe 14-bit digitizers feature sampling rates at up to 500 MegaSamples per second (MS/s) and are available with 2 digitizing channels, input bandwidths of up to 250 MHz, deep onboard sample memory up to 4 GS (8 GB), and true ENOBs of 11.6 bits. In addition to their advanced [...]
GaGe Whitepaper: Real-Time High-Speed Data Acquisition on PC-Based System Platforms GalleryGaGe Whitepaper: Real-Time High-Speed Data Acquisition on PC-Based System Platforms
Brand-GaGe, Industry-Aerospace, Industry-Automotive, Industry-Consumer Products, Industry-Education, Industry-Electronics, Industry-Government/Military, Industry-Manufacturing, News-GaGe, Products-GaGe-Digitizers, Whitepapers, Whitepapers-GaGe, z1
GaGe Whitepaper: Real-Time High-Speed Data Acquisition on PC-Based System Platforms
GaGe Whitepaper: Real-Time High-Speed Data Acquisition on PC-Based System Platforms By Gerald Allgaier, Systems Specialist and Bob Fitzgerald, Application Specialist - Vitrek For many measurements that require the capture and processing of analog data, data throughput speed and conversion resolution are the two most important considerations. Typical examples include Radar, Signals Intelligence (SIGINT), Ultrasound Imaging, Non- Destructive Testing (NDT), Mass Spectroscopy / Time-of-Flight (TOF), and Production Test. These test applications usually demand high speed data transfer rates. So typically, Digitizers (A/D) or Arbitrary Waveform Generators (D/A) residing on a high-speed backplane are required. These [...]
High-Speed A/D 16-Bit Digitizers
GaGe 16-bit resolution digitizer models divide the input voltage range into 65,536 different digitization levels, which improves the delectability limit by a factor of 4 over the 16,384 levels of a 14-bit resolution digitizer model, a factor of 16 over the 4,096 levels of a 12-bit resolution digitizer model, and a factor of 256 over the 256 levels of an 8-bit resolution digitizer model. GaGe 16-bit digitizers feature sampling rates at up to 1 GigaSample per second (GS/s). They are available with 2 or 4 digitizing channels, input bandwidths of up to 600 MHz, deep onboard sample memory of [...]
GaGe White Paper: ENOB: The Best Digitizer Performance Metric
Introduction Figure 1. GaGe High-Speed Digitizers including PC Oscilloscope Software, powerful SDKs for custom application development and turnkey integrated PC-based measurement systems. While the nominal vertical resolution of a high-speed waveform digitizer (specified in bits) is often promoted, its true performance is provided by its measured Dynamic Parameters and in particular by its Effective Number of Bits (ENOB). This article describes measurement of the Dynamic Parameters and presents measurements for a leading-edge GaGe 12-bit Digitizer. A widely used digitizer-like device, the Digital Storage Oscilloscope (DSO), is optimized for the visualization of unknown signals. The relatively [...]
High-Speed Digitizers
High-Speed Digitizers / Oscilloscopes GaGe high-performance digitizers are renowned for sustaining the maximum effective number of bits (ENOB) over a wide signal frequency range with quality signal conditioning and signal fidelity features. With sampling rates up to 6 GS/s and very deep onboard acquisition memory of up to 16 GB, our high-speed PCIe and PXIe digitizers provide optimal combinations of high sampling speeds with 8-bit, 12-bit, 14-bit, and 16-bit high-resolution rates with large sampling memory options and high-speed data streaming capabilities. DIGITIZER OVERVIEW View GaGe Digitizer Advantages View GaGe on Google Scholar [...]
PCIe Sabre Express 16-Bit Digitizer
Sabre Express Digitizer 16-Bit, 4-CH @ 250 MS/s, PCIe Gen3 x8 Request Quote Data Sheet The GaGe Sabre Express 4-Channel PCIe digitizer features 16-bit resolution with sampling rates up to 250 MS/s with true Effective Number of Bits (ENOB) of 10.6-bits with 10 MHz input. Onboard digitizer sample memory is 4 GS (8 GB). Starting at $8,799 Digitizer Features 16-Bit Vertical A/D Resolution with 4 Digitizing Input Channels 250 MS/s Maximum Sampling Rate per Channel --18 Software Selectable A/D Sampling Rates: 1 kS/s to 250 MS/s Front-End with DC [...]
